RASI S80.6L

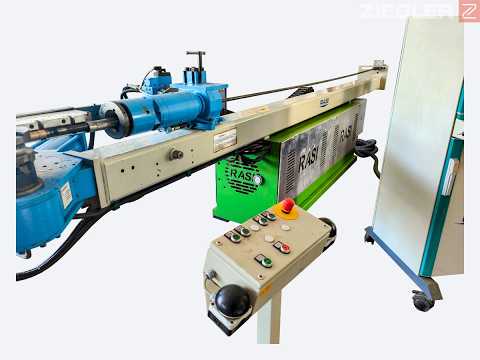

RASI S80.6L – Pipe Bending Machine

- Curve and mandrel bending of pipes and round profiles
- Spiral bending of pipes
- Includes tools and documentation
- Year of manufacture: 2006

Technical Data

- Pipe Ø x wall thickness: 82 x 2.6 mm
- Max. section modulus: 12.7 cm³
- Min. pipe Ø: 4 mm
- Outer bending radius: 228 mm
- Inner bending radius: 34 mm
- Min. bending radius: 1.5 x D
- Max. bending angle (accuracy ± 0.1°): 195°
- Bending speed return (programmable): 0 – 9.3 rpm
- Bending speed forward (programmable): 0 – 6.6 rpm
- Counterholder rail: fixed / following
- Tool configuration: single, double or triple groove
- Bending direction: right
- Feed speed (stepless): 0 – 60 m/min
- Feed pressure: steplessly adjustable during bending
- Torsion speed (stepless): 0 – 60 rpm
Ihedeyvvk Djpfx Ab Now
- Max. torsion angle (± 0.1°): unlimited
- Max. tube clamping force: 8 t
- Collet chuck clamping width: 6.5 mm
- Bending length: 3 – 6 m
- Motor power: 11 kW
- Operating voltage: 400 V / 50 Hz
- Control voltage: 24 V DC
- Machine length: < 7000 mm
- Weight: approx. 2500 kg
