Μηχανή φρεζαρίσματος με κινητή στήλη

Donau Danusys 1510 S

Gantry-type Milling Machine
Completely overhauled in 2025
Work Table Clamping Surface mm 1500 x 1000
Table Height mm 750
Number of T-slots 7
T-slot Size DIN 650 mm 18
Travel Paths
X-axis mm 1500
Y-axis mm 1000
Z-axis mm 700
Distance From Table Top to Spindle Nose min/max. mm 150 / 850
Crsdpfx Aew I Tm Seagjh

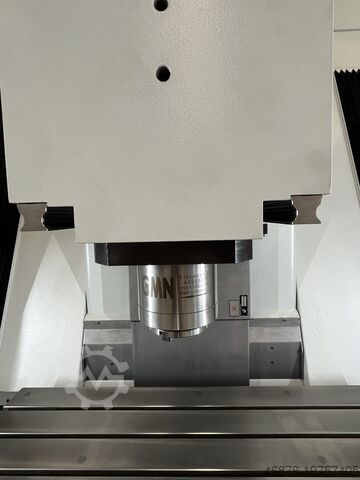

Main Spindle Drive for 8000 rpm
Tool Holder SK 40
AC Motor, frequency controlled kW 26 at 44% duty cycle
Speed Range: rpm 15 – 8000
Torque Nm 245
Internal Coolant Supply (IKZ)
Chip Conveyor
Feed Drives
X-axis AC Servo Motor kW 3.5
Y-axis AC Servo Motor kW 2.0
Z-axis AC Servo Motor kW 3.5
Rapid Traverse Speeds (X/Y/Z): m/min 30/30/20
Indirect Linear Measurement System.
Accuracy
Positioning Accuracy X, Y Axes
over 1000 mm mm ± 0.0150
Repeatability X, Y Axes mm ± 0.0075
Positioning Accuracy Z Axis mm ± 0.0150
Repeatability Z Axis mm ± 0.0075

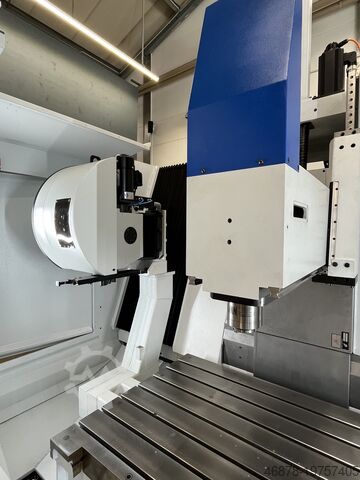

24-Station Tool Magazine
mounted left side of machine
- Tool positions 24
- Tool shank (DIN 69871 / 69872) SK 40
- Max. Tool Diameter mm 76
- Max. Tool Length mm 250
- Max. Tool Weight kg 8
Machine Control: Heidenhain iTNC530
